Inspector non-destructive editing

Overview

Every edit the Inspector makes lands on the selected element's own element.style, for one property. That is the safest target there is — it wins the cascade on that element and is fully reversible — but the panel used to say only “this row changed”, which answers neither what else did that disturb? nor how do I get back?. This feature makes both explicit: a scope summary before you commit, and a receipt afterwards with per-row and global undo.

Usage

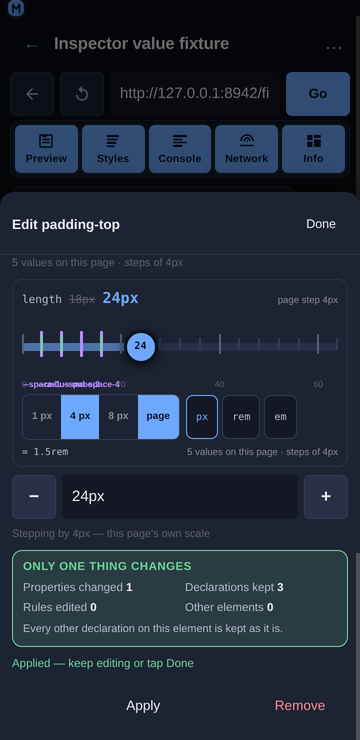

Before committing: the scope summary

Open the edit sheet (tap a declared row or a quick-add chip). Above the actions, Only one thing changes reports what the upcoming write does:

When the property is new to the element, the block says so: “Adds font-size to this element — it had no declaration of its own before.” That is the difference between overriding a value and introducing one, and it is worth knowing before you tap Apply.

After committing: the receipt

Each applied change appears in a strip at the top of the Styles panel:

2 changes                                   ↺ Undo all
font-size           —  → 20px   ↺
background-color    —  → rgb(18, 26, 38)   ↺

• Newest first, because the thing you just did is the thing you are most likely to reverse.

• The struck-through value is what the property had before this session touched it — not before the last Apply. Editing one property three times gives one line, and one ↺ returns to the original.

• A property that was not declared before shows a dash, and undoing it removes the property rather than setting it to an empty value (the same to the browser, a different action to read back).

• Every row has its own ↺, and Undo all reverses the whole list newest-first in one pass.

• The strip renders nothing when there is nothing to undo, and it is cleared when the selection changes or is cleared — its entries name properties of the element that was selected, so undoing them against a new element would write to the wrong node.

Combined with the value-type switch

A type switch (16px → 1rem) is only a rewrite of the field until Apply, so it produces at most one receipt line for the property — and the receipt shows the value from before the switch, not the intermediate one.

Combined with the fan-out and the rail

A fan-out drag (padding: 10px 14px 18px 14px → 24px 14px 18px) and a rail drag each rewrite one property, so each is one receipt entry — including the fan-out, which is one shorthand declaration even though the browser expands it into four longhands. recordChange merges repeat edits on the same property and keeps the original from, so Undo all after a fan-out restores an element that had no padding of its own to exactly that state: no inline style at all, with the origin sentence back to naming the stylesheet rule. A fan-out whose sides cannot legally be collapsed (a var() side) is not rewritten from the view at all, and says why, rather than writing four longhands the user did not ask for.

Behaviour

• Only one property can change per write. The write is style.setProperty(prop, value) for the property in the sheet: it cannot rewrite the element's style block, and it cannot touch another element, because it addresses the resolved element's own style object rather than a selector.

• No stylesheet rule is edited. Rule-level editing needs CSS.setStyleTexts plus stylesheet source parsing, which is not enabled; Rules edited 0 is a statement of that, not a claim about intent. The rules are visible in the target bar and the Matched rules section.

• Undo restores the value, it does not “un-apply”. The plan is set with the remembered value, or remove when there was no previous declaration — so an element returns to the exact state it was in, including having no declaration at all.

• An edit that ends where it started leaves no trace. Typing 16px, then 20px, then back to 16px removes the entry, leaving nothing to undo — and applying the value a property already holds is not recorded either. The list never offers to reverse a change that is not there.

• The receipt is capped at 20 entries (oldest dropped) so a long session cannot grow the strip without bound.

• The receipt is owned above the panels, and lives with the selection. The Styles panel records into it and renders its own strip from it, but the Inspector stores and reverses it: an entry is written by the panel (onRecordChange), the list is rendered by both the panel's strip and the bar's copy, and undo runs in the Inspector against the retained objectId (undoEntryFromBar / undoAllFromBar) so it works while the panel is switched off. After an undo the Inspector re-reads the element and corrects its retained snapshot, then bumps a nonce which the panel watches to re-read its own copy — both the inline declarations and the matched-rules entry that carries the element's own element.style rule, because a shorthand the CSSOM expanded is only findable through the second (see Inspector value rail).

• A failed revert reports on the panel's status pill and leaves the entry in place, so the change is not lost from the list just because the write failed.

Related

• Inspector Styles panel — tap-to-select, inline editing, matched rules, computed values.

• Inspector target bar — which element and which rule an edit lands on.

• Inspector value types — switching a value between length, number, percentage and keyword.
