Inspector value types

Overview

A CSS declaration's type is invisible in the panel: 14px, 14, 87.5%, 0.875rem and auto all read as “the value of padding”, yet they are not interchangeable — some are the same value written differently, some discard information, and some cannot be derived without a base size the inspector may not have. The edit sheet therefore carries an explicit value type switch and a unit control next to the value field, and both state their cost before they are tapped.

Usage

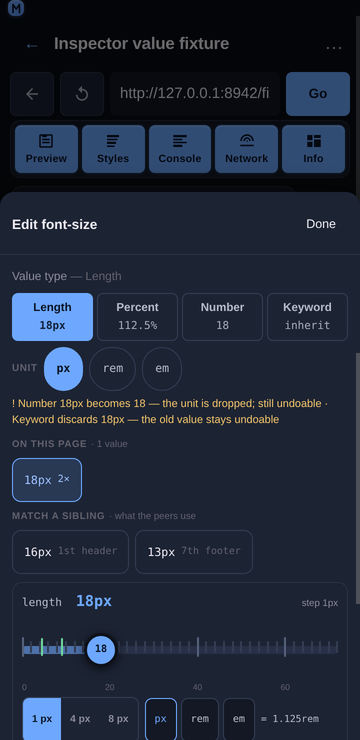

Tap any declared style row (or a quick-add chip) in the Styles panel to open the edit sheet, then type or edit the value. Below the Value label:

A property the element does not declare yet opens on its family's neutral value — 0px for a length, 0 for a number, 0ms for a time, 0deg for an angle — rather than on an empty field, so the type switch, the unit row and the rail are all there from the first tap. A colour, a keyword and a custom property have no neutral form worth inventing (#000000 is a choice, not an absence), so those fields stay empty and the page palette or the keyword chips are the input. Nothing is written to the page until Apply, and the seeded value is editable like any other.

1. Value type — one segment per applicable type with the value it would write underneath:

• Length (16px), Percent (100%), Number (16), Keyword (inherit) for a font-size;

• Colour and Keyword for a colour;

• Time (ms / s) for a duration, Angle (deg / turn / rad) for a rotation.
  The type in force is highlighted and shows the current value. Tapping another type rewrites the field — nothing is written to the page until Apply.

1. Unit — a chip row for the type in force (px / rem / em for a length, ms / s for a time, deg / turn / rad for an angle). Same value, different unit: 16px ⇄ 1rem with a 16 px root, 180ms ⇄ 0.18s, 0.5turn ⇄ 180deg. A unit whose base size is unknown is shown ticked-out (rem with no root size read yet) rather than computed from an assumed 16 px.

2. The warning line — names the cost of the lossy forms: Number 16px becomes 16 — the unit is dropped; still undoable · Keyword discards 16px — the old value stays undoable. Forms that cannot be derived are listed with the reason instead of offering a guessed number: Percent: a percentage of font-size needs a base size the inspector does not read.

3. Apply — commits the value that is in the field. The switch itself never writes, so a type change is one property and one undo entry, and the element's other declarations are untouched.

Behaviour

• Which types are offered is per property, from the property's family plus the suffixes CSS itself uses (border-top-width is a length, transition-delay is a time, background-color is a colour, border-top-left-radius is a radius). A property that is nobody's shorthand and matches no suffix stays untyped, and its switch is the Keyword form alone — will-change, text-align.

• A side-suffixed longhand is typed as its shorthand, because that is what the panel actually lists: the CSSOM stores padding: 10px as padding-top/right/bottom/left, so every row in the Declared and Computed lists is a longhand. The family is therefore derived by taking the side segment out — padding-top → padding, margin-inline-start → margin, border-top-left-radius → border-radius (the side is a middle segment there) — and reading the family of the base. Without that step a row's value page offered the Keyword form and nothing else: no Length segment, no unit chips, no numeric stepper, on exactly the sheet the user opens by tapping the property they just changed. A property whose value is a keyword set (display) gets the keyword form only; an unparsable value (url(hero.png), calc(100% - 2px)) gets no invented conversions. The keyword sets are also what the enum view renders, so adding one is how a property gains segments: transition-timing-function and animation-timing-function are listed with the easing keywords (ease, linear, ease-in, ease-out, ease-in-out, step-start, step-end) precisely so those two properties get chips instead of a typed field that would ask for cubic-bezier(0.4, 0, 0.2, 1).

• 0 is a length, not a number. padding: 0 classifies as a length (a zero length needs no unit) while line-height: 0 stays a number, because that is what the two properties accept. 0px ⇄ 0 is reported lossless and says “0 needs no unit”.

• A bare number is not silently a length. 14 → 14px keeps the digits but changes the meaning, so it is offered, flagged not-lossless, and the discarded text is named. Undo restores it.

• Which conversions are lossless follows CSS, not arithmetic: absolute lengths (pt, pc, in, cm, mm, q) to px, px ⇄ rem/em when the base is known, px ⇄ % for font-size (the base is the parent's font size), opacity 1 ⇄ 100%, times and angles, and colour formats. Decimal noise is rounded to four places, so 1rad reads 57.2958deg.

• A percentage is refused where it means something else. padding: 14px → % needs the containing block's width; z-index: 3 → 3% is not a stacking order; flex-grow: 1 → 100% is a different value. Each is disabled with its reason rather than converted.

• Custom properties are typed by what they hold. --space-card: 14px gets the length switch (so a design token is editable as a length), while var(--w) used as a value is the custom form and gets no numeric switch.

• The base font sizes are read from the page, not assumed: root for rem, the parent element for em and for a font-size percentage. They travel with every pick (buildNodeModel) and with every post-edit read (readElementStyles), so the switch is fully available the moment an element is selected — an earlier version read them only after an edit, which left Percent and rem disabled exactly when the user wanted them.

• The − / + steppers move by the page's own step. When the value index finds a numeric scale for the property being edited (steps of 4px), a nudge moves by 4 and the line under the field says so (Stepping by 4px — this page's own scale · nearest 12px); without a scale the original ±1 behaviour is kept, and a caller that passes its own precision overrides both. See Inspector value suggestions for the snapping arithmetic.

Related

• Inspector Styles panel — tap-to-select, inline editing, matched rules, computed values.

• Inspector value suggestions — the values and tokens the page already uses for the property being edited.

• Inspector target bar — which element and which rule an edit lands on.
