Inspector value suggestions

Overview

The type switch changes how a value is written and the unit cycle rewrites the same value in another unit — but neither answers the question that actually stalls an edit: what should this value be? The edit sheet therefore lists the values and design tokens this page already uses for the property being edited, each with the evidence behind it: how many times it appears and which rule supplies it. On top of that list it adds two pieces of guidance the evidence alone cannot give: the value being typed is placed on the page's own numeric scale (with the nearest value and its distance named), and every colour candidate carries its WCAG contrast ratio against the element it would be applied to.

Usage

Open the edit sheet (tap a declared row or a quick-add chip). Below the value-type switch, for a property the page declares:

Value type — Length        [ Length 16px ][ Percent 100% ][ Number 16 ][ Keyword inherit ]
On this page · 3 values · steps of 4px
  [ 16px 3× ]  [ 12px 1× ]  [ 8px 1× ]
Tokens · from this page
  [ --space-4 = 16px ]  [ --space-3 = 12px ]
Stepping by 4px — this page's own scale · nearest 16px
4 values on this page · steps of 4px

1. On this page — the values declared for this property anywhere in the page's stylesheets, most-used first. Each chip carries its count (3×) and, on its tooltip, the rule that supplies it (used 3 times (.card)) and its origin (inherited from form.compare). The header counts every value the page declares, not just the chips that fit: a property with thirty padding values reads 34 values seen where the row shows six, because "this property has a scale" and "here are the six most-used values" are different claims.

2. The value in force — the one the element already resolves to is highlighted, not sorted away: picking it back is a legitimate way to undo a pending edit.

3. Match a sibling — what the element's peers use for this property, one chip per distinct value, labelled with the element it comes from:

Match a sibling · what the peers use
[ 16px 2nd section.input-section ]  [ 8px 4th section.toolbar ]

The page's stylesheet values are anonymous; a peer is a referent the user can go and look at ("the 2nd section.input-section uses 16px"), which is where a spacing decision usually starts. The value already in the field is not offered back.

1. Tokens — custom properties (--*) whose value is valid for this property, shown as --space-4 = 16px. Picking one inserts the token name, so the declaration points at the design system rather than copying its value.

2. The step — when the page's values for the property share a numeric scale, the group header states it (steps of 4px) and the note under the chips repeats the evidence: 4 values on this page · steps of 4px. The − / + steppers on the value field move by that step instead of by 1, and the line under them says so: Stepping by 4px — this page's own scale.

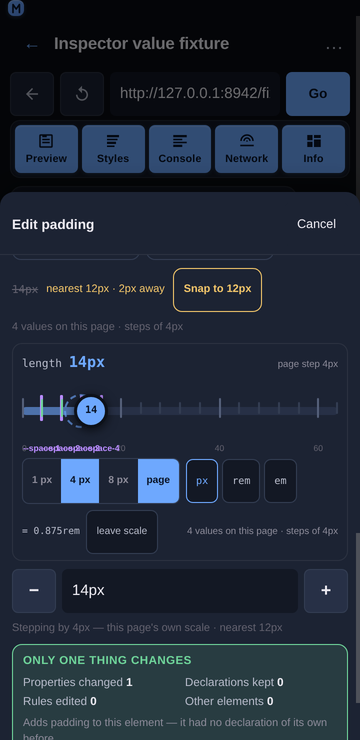

3. The snap hint — a value that is not one of the page's own values is marked with the value struck through, the nearest page value and how far off it is, and a Snap to 16px button:

13px  nearest 16px · 3px away    [ Snap to 16px ]

An on-scale value says so quietly (on scale · 4 px step) and offers no button.

1. Colour contrast — for a colour property the chip row becomes the page's palette, each swatch carrying its ratio against the element's resolved background: #9cc2ff AA 8.7:1, #2b3a56 fail 2.4:1. A chip that fails takes the danger styling, so a legibility mistake is visible before Apply rather than after. When the page offers fewer than three colours for the element, a Readable on this element group adds the higher-contrast of white and black.

2. Keywords for a string value. A value with no per-kind view (font-family, content, a font stack) gets one more group — the property's own keywords and the CSS-wide four, which are otherwise unreachable for it:

Keywords · valid for any property   [ inherit ] [ initial ] [ unset ] [ revert ]

The word already in the field is not offered back, and an enum-shaped property (cursor, display) does not get the group: it renders its own chips, and the same list twice is worse than once.

1. Tapping a chip only rewrites the field. Apply still commits, so a suggestion, a snap, a sibling value, a keyword and a palette pick are exactly as reversible as anything typed — one property, one undo entry.



Behaviour

• The index is built from what the panel already reads — the normalized matched rules and the computed style — so suggestions cost no extra CDP call. It is memoised because the panel re-renders on every CDP event (a console row, a network response) while those two inputs change only on a selection or an edit.

• The count is evidence, not decoration. 16px · 3× says the design already uses this value three times, which is the difference between a guess and a choice. The rule name is on the tooltip because it is the answer to “where does that come from?”. The group header counts what the page declares (valuesSeen), so a capped chip row still reports the size of the set it was drawn from.

• A sibling value is read, and read once. readSiblingValues(objectId, property) walks the selected element's parentElement.children in one Runtime.callFunctionOn and returns { prop, value, label } per peer, where the value is the peer's computed value (a sibling that inherits its padding is using that padding) and the label is the peer's ordinal and tag (2nd section.input-section). It runs once per property the sheet is open on — the reader is held in a ref, not in the effect's dependencies, so the panel's constant CDP re-renders cannot re-trigger it — and it is capped at 12 peers, because a 500-row table must not turn one tap into a thousand-element read. siblingValues groups those rows by value for the chips, so two peers on 16px are one chip with 16px and the first of their two labels.

• The sibling row is a hint, not a rule. It offers only values the peers actually use, drops the value already in the field, and is capped at three chips (a chip carries a value and an element label). It renders even when the page declares nothing for the property, because "the other section uses 16px" is exactly the answer needed when the index is empty.

• The selector recorded for a value is the rule that wins it, because the cascade is already ordered most-specific first — the first rule seen declaring a value is the one supplying it.

• A token is offered only when both checks pass: its value classifies as a valid value for this property (the same classifier the type switch uses), and its name belongs to the property's family. The second check matters because --radius-md holds 8px — a perfectly valid length — so a type check alone would offer a radius token as a padding value. Names are matched on segments (--space-3 is space, --radius-md is radius, --brand is colour), and the check only ever excludes: an unknown property is type-checked rather than name-filtered.

• An unresolved token is never offered. A token declared as var(--other) is skipped until the computed style resolves it, because showing a token without knowing what it is worth is worse than showing nothing.

• No suggestion for a property the page knows nothing about. With neither a declared value nor a resolved value there is nothing to type tokens against, so the whole group is omitted rather than guessed.

• The step is the GCD of the page's values for the dominant unit: 4/8/12/16 reports 4px, and 1.5/3/4.5 reports 1.5. A single value has no step, and mixed units (a 50% among px values) fall back to the unit used most rather than claiming one — and a shorthand value (12px 10px 32px) has no step at all, because it is not a number.

• Snapping is never silent. snapValue reports the honest distance and returns the value untouched unless the caller explicitly asks for the snap, which is what the button does. The field is the source of truth and the only way to know what a write would change, so the user’s text stays in it until they decide.

• “On the scale” means one of the page’s values, not a multiple of the step: on a 4 px scale whose page values are 4/8/16, 12px is off the scale and reports nearest 8px · 4px away. Saying otherwise would hide the nearest-value evidence the hint exists to show.

• A unit that the scale does not use is not compared. 50% against a px scale, or 1.5rem where the page’s values are px, is reported with its reason (the page's scale is in px, this value is in %) instead of being converted with a base size the module does not have. A bare number adopts the scale’s unit, because the steppers write 14 under a 4 px step header.

• The step beats ±1, and an explicit precision beats the step. The steppers move by the page’s step when the index found one; a caller that passes its own precision (the rail’s 1 px / 4 px / 8 px segment) overrides it, because a deliberated choice outranks an inferred one. Without either, the original ±1 behaviour is kept.

• A tie in the nearest value resolves downward, so the hint does not flicker between two candidates while the user types.

• The contrast ratio is the WCAG 2.1 one, computed from relative luminance and composited for translucency: #777 on white measures 4.478:1 and is shown as fail 4.48:1, not rounded up to a passing 4.5. The badge only shortens to one decimal when the shorter form cannot misstate the level, so the common case reads as AA 7.4:1.

• A colour that cannot be read is still shown. var(--x), a gradient or an unknown name keeps its chip with the reason and no badge, rather than disappearing from the list.

• A transparent background has no ratio. There is nothing to measure a text colour against, so contrast returns ok: false with the reason and the chip renders without a badge.

• Chips stay on one line. A long shorthand ellipsizes (its full text is on the tooltip and in the accessible name), and the snap hint wraps instead of scrolling, so the sheet never scrolls sideways at 360 px.
